Overview

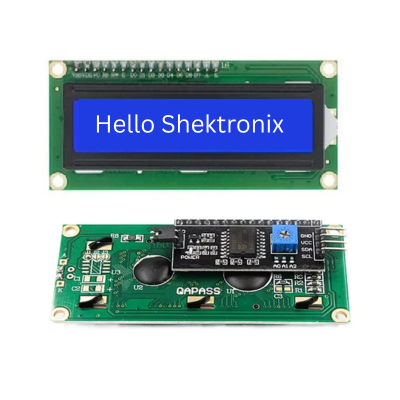

This 16×2 LCD Display with I2C is one of the most popular display modules used in electronics, embedded systems, and IoT projects. It can display 16 characters per line and 2 lines, making it perfect for showing sensor values, menu systems, device status, and debug information.
The added I2C backpack module significantly reduces wiring—from 16 pins to just 4 pins (VCC, GND, SDA, SCL). This makes it ideal for Arduino, ESP32, ESP8266, and Raspberry Pi users who want clean and simple connections.
✨ Features
✔ 16×2 character LCD module
✔ Comes with I2C backpack (PCF8574)
✔ Works on 5V supply
✔ Adjustable contrast using onboard potentiometer
✔ Supports Arduino LiquidCrystal_I2C library
✔ Requires only 2 communication pins
✔ Available in Green or Blue backlight
✔ Long life and low power consumption
✔ Compatible with Arduino, ESP32, ESP8266, and other MCUs
🛠️ Technical Specifications
-
Display Type: 16×2 LCD (1602A)
-
Interface: I2C (PCF8574)
-
Operating Voltage: 5V
-
Number of Characters: 16 × 2
-
Backlight Colors: Green / Blue
-
Contrast Adjustment: Yes (Potentiometer)
-
I2C Address: 0x27 (default)
-
Controller: HD44780 compatible
📦 Package Includes
-
1 × 16×2 LCD Display
-
1 × I2C Module (pre-soldered)
🔌 Applications
-
IoT devices
-
Sensor data display
-
Home automation
-
Robotics
-
Industrial monitoring
-
Weather stations
-
Educational projects
