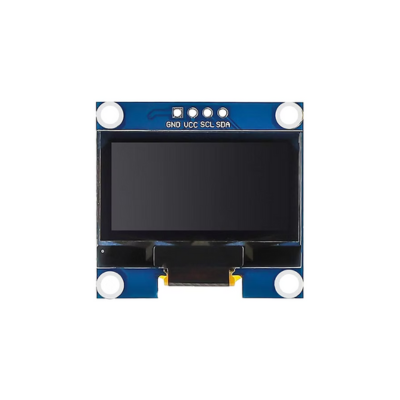

What is the 0.96 Inch OLED Display?
The 0.96 inch OLED display is a compact 128×64 pixel screen widely used in Arduino, ESP32, NodeMCU, and Raspberry Pi projects. It uses an I2C interface, allowing you to connect it using only two wires (SDA & SCL). OLED pixels emit their own light, providing excellent brightness, clarity, and ultra-low power consumption.
Perfect for IoT dashboards, sensor displays, and compact embedded systems.
Features of the 0.96 Inch OLED Display
-
High-contrast 128×64 resolution
-
Vibrant OLED pixels (no backlight required)
-
I2C communication for easy wiring
-
Works on 3.3V and 5V
-
SSD1306 / SH1106 driver compatible
-
Large viewing angle
-
Extremely low power consumption
-
Ideal for battery-operated devices
-
Displays text, graphics, icons, and logos
Specifications of the 0.96 Inch OLED Display
| Parameter | Value |
|---|---|
| Display Size | 0.96 inch |
| Display Type | OLED |
| Resolution | 128×64 pixels |
| Interface | I2C |
| Driver IC | SSD1306 / SH1106 |
| Operating Voltage | 3.3V–5V |
| Pins | GND, VCC, SCL, SDA |
| Display Color | White / Blue |
| Viewing Angle | Wide |
| Power Consumption | Low |
Pin Details
Pinout of the Display
-
GND – Ground
-
VCC – 3.3V or 5V
-
SCL – I2C Clock
-
SDA – I2C Data
Compatibility
Supported Microcontrollers
The 0.96 inch OLED display is compatible with:
-
Arduino UNO, Nano, Mega
-
NodeMCU ESP8266
-
ESP32 / ESP32-C3
-
Raspberry Pi
-
STM32, PIC, AVR
-
MicroPython / CircuitPython boards
Applications of the 0.96 Inch OLED Display
-
IoT monitoring systems
-
Sensor dashboards
-
Wearable devices
-
Smart home devices
-
Digital clocks & counters
-
Battery indicators
-
Environmental monitors
-
Robotics projects
How to Use the 0.96 Inch OLED Display
Using with Arduino
Connections:
-
SDA → A4
-
SCL → A5
-
VCC → 3.3V/5V
-
GND → GND
Using with ESP32
Connections:
-
SDA → GPIO 21
-
SCL → GPIO 22
-
VCC → 3.3V
-
GND → GND
Install Libraries:
-
Adafruit SSD1306
-
Adafruit GFX
External Reference (DoFollow):
https://www.arduino.cc/reference/en/libraries/adafruit-ssd1306/
Internal Links
You may also like:
Why Choose This 0.96 Inch OLED Display?
-
Easy to interface with any board
-
Superb contrast and visibility
-
Great for IoT displays
-
Durable and power-efficient
-
Affordable and reliable
-
Ideal for DIY and commercial projects
